EtherCAT standalone I/O module
Product Features
Specification
| Model | OM52xS EtherCAT slave module |
| Technical Specifications | |
| Working Voltage | 24VDC (voltage range 18VDC~28VDC) |
| Operating Current Loss | Based on different product models, please refer to the product manual for details |
| Power Protection | Anti reverse connection protection, surge absorption |
| Communication Interface | 2*RJ45 |
| Power Terminal Type | Plugged connector, screw wiring connection port |
| Signal Terminal Type | Plugged connector, straight in PUSH-IN wiring port |
| Display Indication | Power supply, NET green indicator light, SF red indicator light, IO signal green indicator light |
| Protocol | EtherCAT |
| Master-slave categories | standalone slave devices |
| Main IO points | Yes, please refer to the ordering data for details |
| Overcurrent Protection Threshold | 1.5A, 5ms |
| IO Response Time | Minimum 500us |
| Scalability | Do not support Extension |
| Cable length (shielding) | Maximum 500m |
| Cable length (unshielded) | The maximum length of the input point is 300m, and the maximum length of the output point is 150m |
| Slave Station Settings | |
| Address Settings | Configuration by dial switch or master station |
| Maximum number of Stations per Segment | 255 (The specific number of supported stations is determined by the master station) |
| Work Environment | |
| Working Temperature | -20~60℃ |
| Working Humidity | 5%~90% (non-condensation) |
| Protection Grade | IP20 |
| Dimensions(l* w * h) | 27mm*94mm*114mm |
Packing Box
Ordering Details
| Specifications | Product No. |
| OM521S standalone module, EtherCAT bus, 2 RJ45 ports, 24VDC power supply, with 8-bit dial code to set station ID address, the product comes with 32DI (common anode/common anode input), does not support internal bus expansion module, IP20 protection level, supports DN35 din-rail installation |
OM521S-1BL22-ECT |
| OM522S standalone module, EtherCAT bus, 2 RJ45 ports, 24VDC power supply, with 8-bit dial code to set station ID address, the product comes with 32DO (PNP output), does not support internal bus expansion module, IP20 protection level, supports DN35 din-rail installation |
OM522S-1BL22-ECT |
| OM522S standalone module, EtherCAT bus, 2 RJ45 ports, 24VDC power supply, with 8-bit dial code to set station ID address, the product comes with 32DO (NPN output), does not support internal bus expansion module, IP20 protection level, supports DN35 din-rail installation |
OM522S-1NL22-ECT |
| OM523S standalone module, EtherCAT bus, 2 RJ45 ports, 24VDC power supply, with 8-bit dial code to set station ID address, the product comes with 16DI (common anode/common anode input) and 16DO (PNP output), does not support internal bus expansion module, IP20 protection level, supports DN35 din-rail installation |
OM523S-1BL22-ECT |
| OM523S standalone module, EtherCAT bus, 2 RJ45 ports, 24VDC power supply, with 8-bit dialing to set station ID address, the product comes with 16DI (common anode/common anode input), 16DO (NPN output), does not support internal bus expansion module, IP20 protection level, supports DN35 din-rail installation |
OM523S-1NL22-ECT |
| OM523S standalone module, SM523S standalone module, EtherCAT bus, 2 RJ45 ports, 24VDC power supply, with 8-bit dial code setting station ID address, the product comes with 16DI (common anode/common anode input) and 12DO (relay output), does not support internal bus expansion module, IP20 protection level, supports DN35 din-rail installation |
OM523S-1HJ22-ECT |
| OM524S standalone module, EtherCAT bus, 2 RJ45 ports, 24VDC power supply, with 8-bit dialing to set station ID address, the product comes with 16DI (common anode/common anode input) and 16DIO (NPN input/NPN output configurable, 2-way group configuration), does not support internal bus expansion module, IP20 protection level, supports DN35 din-rail installation |
OM524S-2NL22-ECT |
| OM525S standalone module, EtherCAT bus, 2 RJ45 ports, 24VDC power supply, with 8-bit dialing to set station ID address, the product comes with 16DO (NPN output) and 16DIO (NPN input/NPN output configurable, 2-way group configuration), does not support internal bus expansion module, IP20 protection level, supports DN35 din-rail installation |
OM525S-3NL22-ECT |
| OM526S standalone module, EtherCAT bus, 2 RJ45 ports, 24VDC power supply, with 8-bit dialing to set station ID address. The product is equipped with 16DIO (NPN type, 2-channel group configuration input or output), does not support internal bus expansion module, IP20 protection level, supports DN35 din-rail installation |
OM526S-1NH22-ECT (planning product) |
Dimension

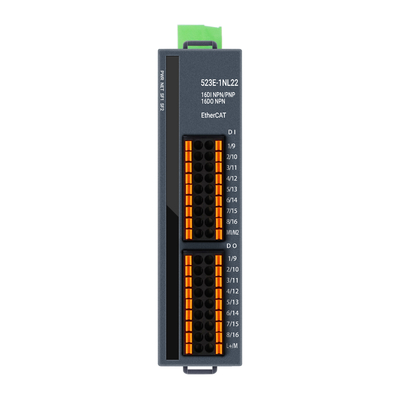

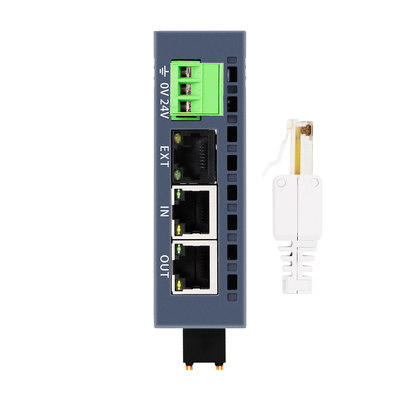

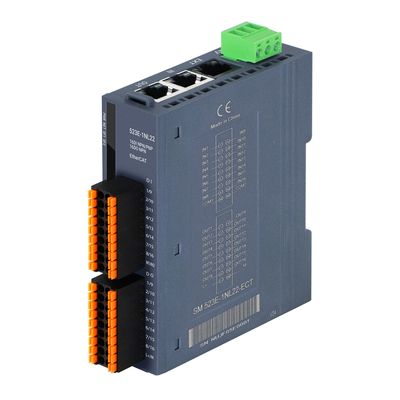

More Product Photos
