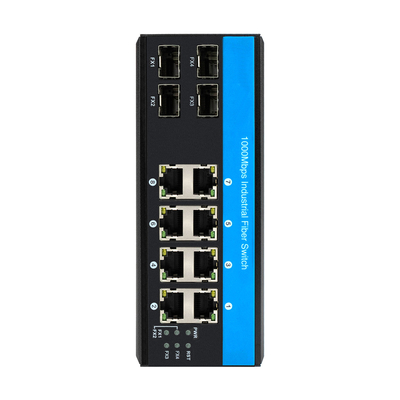

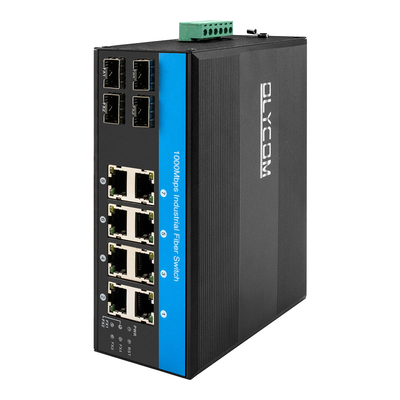

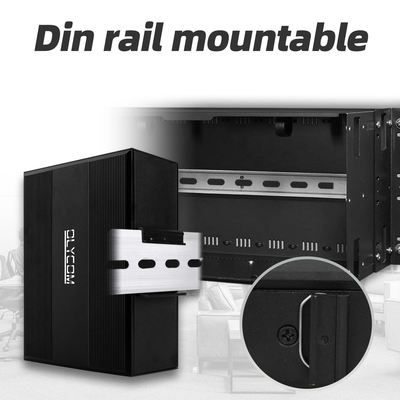

12 Port 10/100/1000mbps unmanaged din-rail poe switch
4 SFP ports+ 8 RJ45 ports ethernet switch
Key Features of 12 port Industrial POE switch
* Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
* IEEE 802.3af power on to 1 ~ 8RJ45 ports
* 8x 10/100/1000Mbps Auto-sensing RJ45 ports
* 4x 1000Mbps SFP fiber ports
* 6KV Ethernet surge protection, adapt to a harsh outdoor environment
* Support Auto MDI/MDIX
* Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
* IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
* Max power to15.4W under af standard, 30W under at standard to each PoE port
* Detect the PoE models of electrical equipments.
* A store-and-forward switching mechanism

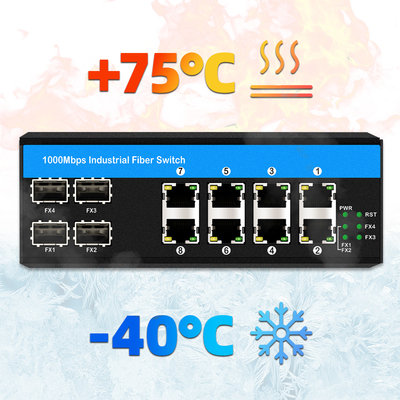

* Operating environment temperature:-40 ° ~75 ° c
Specification of Industrial Full Gigabit Switch
| Product Name | 10/100/1000Mbps Industrial POE Fiber Switch (4F+8TP) |
| Model No. | IM-FP488GE |
| Port |
4x 1000Mpbs SFP ports |
| Switching features |
Transmission mode:Storage and Forward |
| Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) |
| LEDs | Power, network, fiber |
| Power supply |
POE power supply input voltage: 48V (max 52V), |
| Environment |
Working temperature:-40°～ 75°C |
| Industry Standards |
EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A |
| Safety |
CE Mark ,commercial |
| Mechanical information |
Shell:Corrugated metal shell |
| Warranty | 3 years repairing |
Packing box of Din rail switch:
| PACKING LIST | CONTENT | QTY | UNIT |
| 12-port gigabit uplink industrial PoE+ switch | 1 | SET | |
| User Manual | 1 | PC | |
| Warranty Card | 1 | PC | |
| Removable Terminal Block | 1 | PC | |
| Note: Industrial POE Switch does not include the power supply and SFP module. | |||
FAQ:
1.Are you a manufacturer?
Yes, we have our production line and R&D team.
Please visit us via below VR link to see our office and production area.
https://www.ecer.com/corp/uuu5b8d-industrialnetworkswitch/vr.html
2.What is the leadtime if I order?
After receiving the payment, we start production.
If you are ordering some popular models, we usually got stock. After some testings, we will ship the materials.
If we do not have stock, production time is usually 3~5 working days for less than 50pcs/pairs.
3. How will you ship my order?
We will send the goods by air(DHL, UPS or FEDEX) or by sea(for bulk order)
It is fine to ship purchased items via customer’s shipping account or forwarder.
It takes 3~5 calendar days to arrive at local customs for clearance.
4. What is MoQ?
1 Pc/Pair.
For many models, we have stock, it is easy to send samples for your testing.
5. Can I have a discount?
Yes and it is usually based on quantity and after sample testing.
