Industrial gigabit 8 port din rail ethernet poe switch DC48-52V dual power input
Key Features of 8 port Industrial POE switch
Specification of Industrial Full Gigabit Switch
| Product Name | 10/100/1000Mbps Industrial POE Fiber Switch (2F+8TP) |
| Model No. | IM-FP288GE |
| Port |

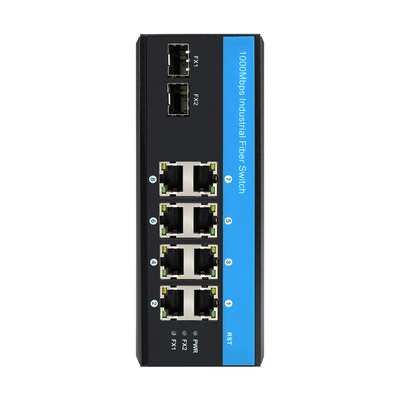

2x 1000Mpbs SFP ports SM: 1310nm/1550nm, 20Km 1490nm/1550nm, 40~120Km MM: 1310nm, 2Km; 850nm, 500m 8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) |
| Switching features |
Transmission mode: storage and forward System bandwidth: 20Gbps (non-traffic jam) Forwarding rate: 14.88Mmps MAC: 4K Packet buffer size: 1.75Mb |
| Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) SFP port, transmission distance: 20Km, 40Km, 60Km, 80Km, 100Km |
| LEDs | Power, network, fiber |
| Power supply |
POE power supply input voltage: 48V (max 52V) Single PoE power supply output power: 30W (port 1~8) PoE output voltage: 48V |
| Environment |

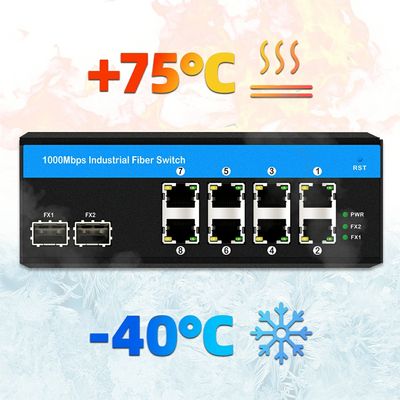

Working temperature: -40～75°C Storage temperature: -40～85°C Working humidity: 10%～90%, non-condensing Storage humidity: 10%～95%, non-condensing |
| Industry Standards |

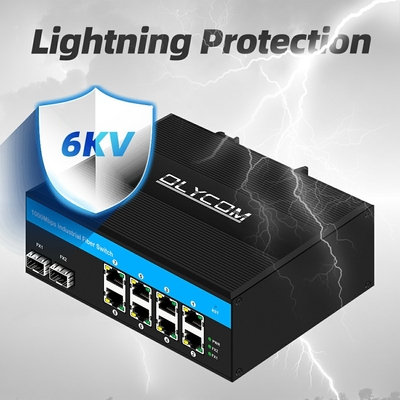

EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A EMS: EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8 Traffic Control: NEMA-TS2 Vibration: IEC 60068-2-6 Freefall: IEC 60068-2-32 Shock: IEC 60068-2-27 Rail Traffic: EN 50121-4 |
| Safety |
CE Mark, commercial CE/LVD EN60950 |
| Mechanical information |

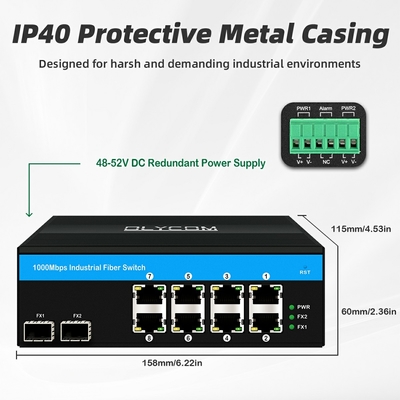

Shell: Corrugated metal shell Safety class: IP40 Dimension: 158 x 115x 60mm Mounting method: Din-rail/Wall mounting |
| Warranty | 3 years |
Application of din-rail ethernet switch:
Packing List of Din rail unmanaged switch:
| PACKING LIST | CONTENT | QTY | UNIT |
| 8-port gigabit uplink industrial PoE+ switch | 1 | SET | |
| User Manual | 1 | PC | |
| Warranty Card | 1 | PC | |
| Removable Terminal Block | 1 | PC | |
| Note: Industrial POE Switch does not include the power supply and SFP module. | |||
FAQ:
1. What is the input voltage?
A: For PoE switches, it is DC48V~52V.
For non-PoE switches, it is DC12V~52V.
2. What is the power budget?
A: Each PoE port supports 15.4W/30W/60W output.
The default output is 30W(please let us know if you need 60W type)
The total budget: output watts of each port times PoE ports
3. Is it managed?
A: No, this series is unmanaged.
We have another managed series for your choice.
4. What installation method does it support?

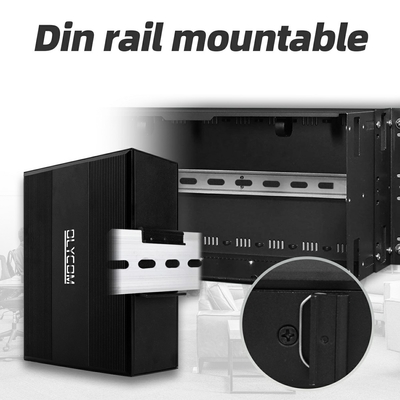

A: It supports Din Rail and wall mounting.
If a special mounting kit is required, it is OK, we dealt with it before.
5. Does the fiber port support 100M speed?
A: Yes, for 100M models, it just supports 100M modules.
For Gigabit models, the fiber port is 100M/1000M auto-adaptive, you can insert 155Mb/s or 1.25Gb/s modules, both will work.
