Gigabit 12 Port Industrial PoE Ethernet Switch
IEEE 802.3af/at RJ45 DIN Rail Installation Switch
Introduction of 12 port Industrial POE switch

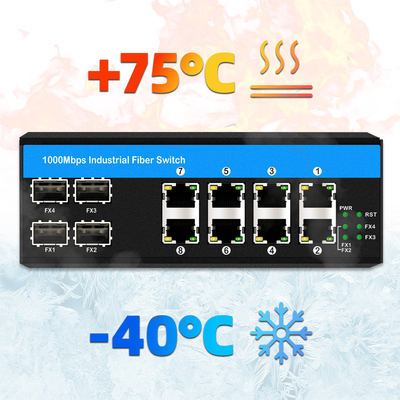

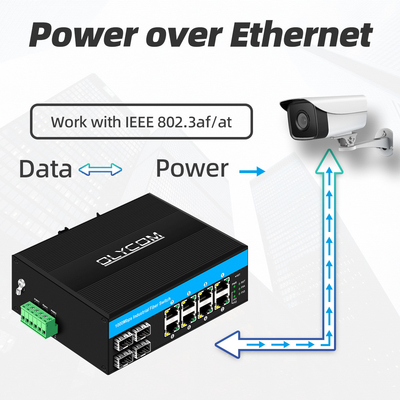

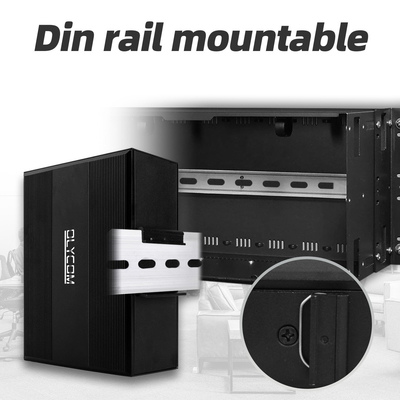

IM-FP488GE series is the 10/100/1000 Mbps industrial POE fiber switch, comply with IEEE802.3af/at, power on POE IP cameras through the Ethernet cable, simple construction, power range up to 100 meters, operating temperature-40 ℃ to + 75 ℃, meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.
Specification of Industrial Full Gigabit Switch
| Product Name | 10/100/1000Mbps Industrial POE Fiber Switch (4F+8TP) |
| Model No. | IM-FP488GE |
| Port |
4x 1000Mpbs SFP ports |
| Switching features |
Transmission mode:Storage and Forward |
| Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) |
| LEDs | Power, network, fiber |
| Power supply |
POE power supply input voltage: 48V (max 52V), |
| Environment |
Working temperature:-40°～ 75°C |
| Industry Standards |
EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A |
| Safety |
CE Mark ,commercial |

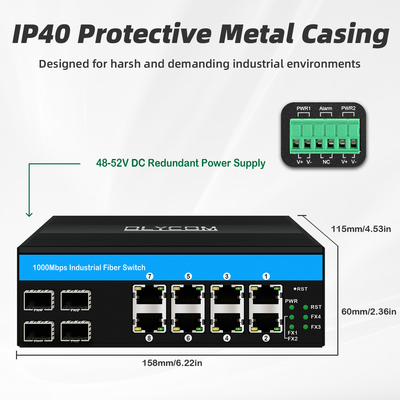

| Mechanical information |
Shell:Corrugated metal shell |
| Warranty | 3 years repairing |
Packing box of Din rail managed switch:
| PACKING LIST | CONTENT | QTY | UNIT |
| 6-port gigabit uplink managed industrial PoE+ switch | 1 | SET | |
| User Manual | 1 | PC | |
| Warranty Card | 1 | PC | |
| Removable Terminal Block | 1 | PC | |
| Note: Industrial POE Switch does not include the power supply and SFP module. | |||
