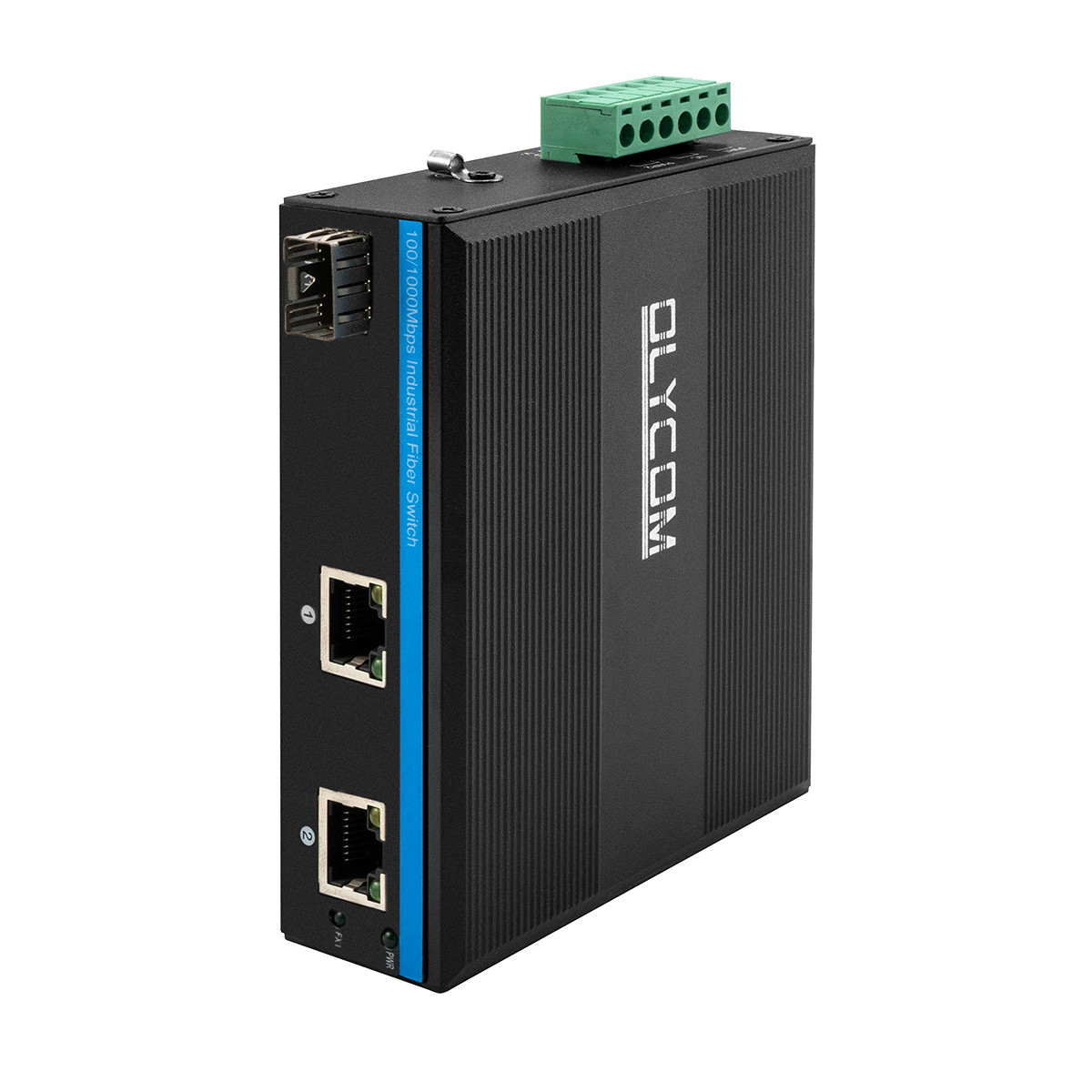

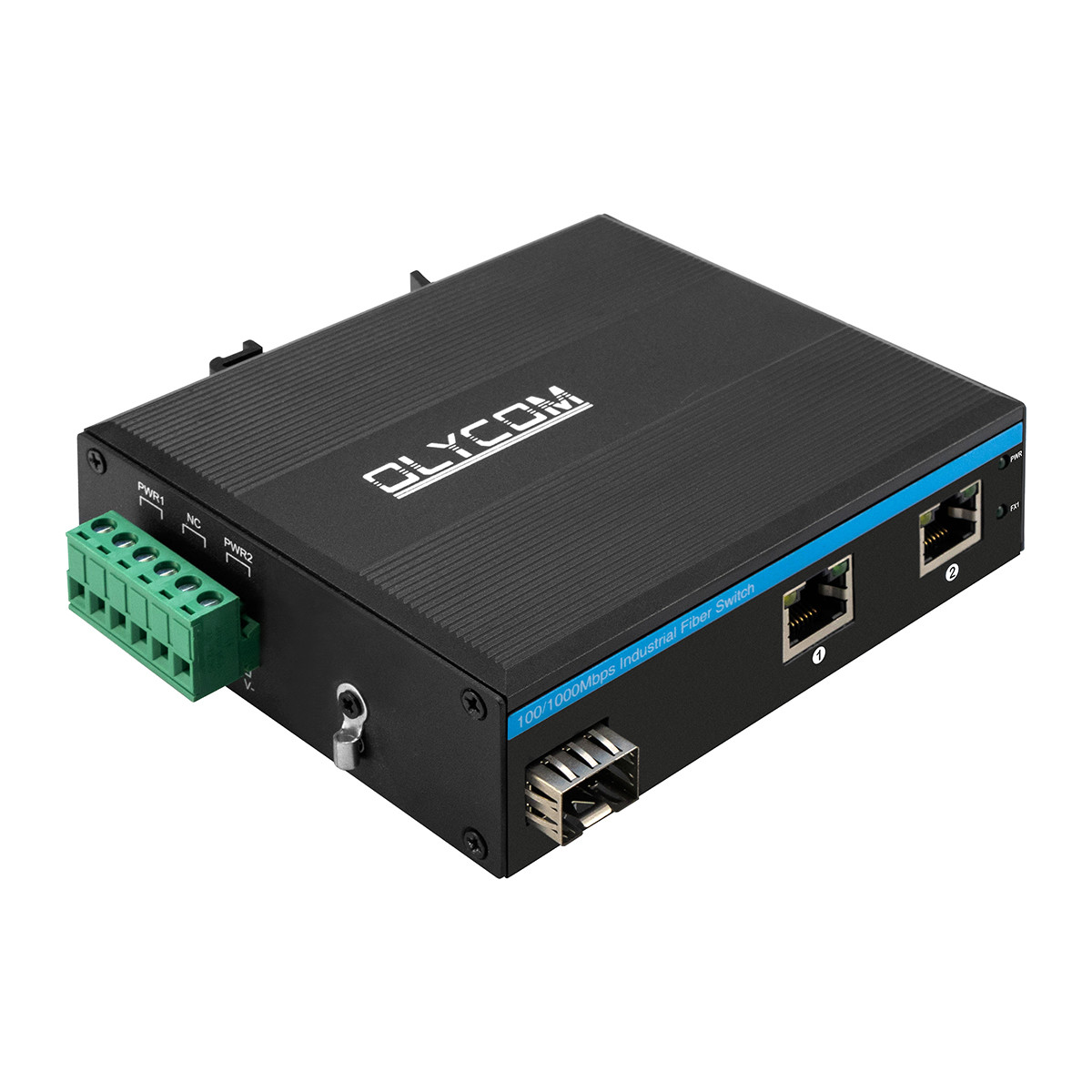

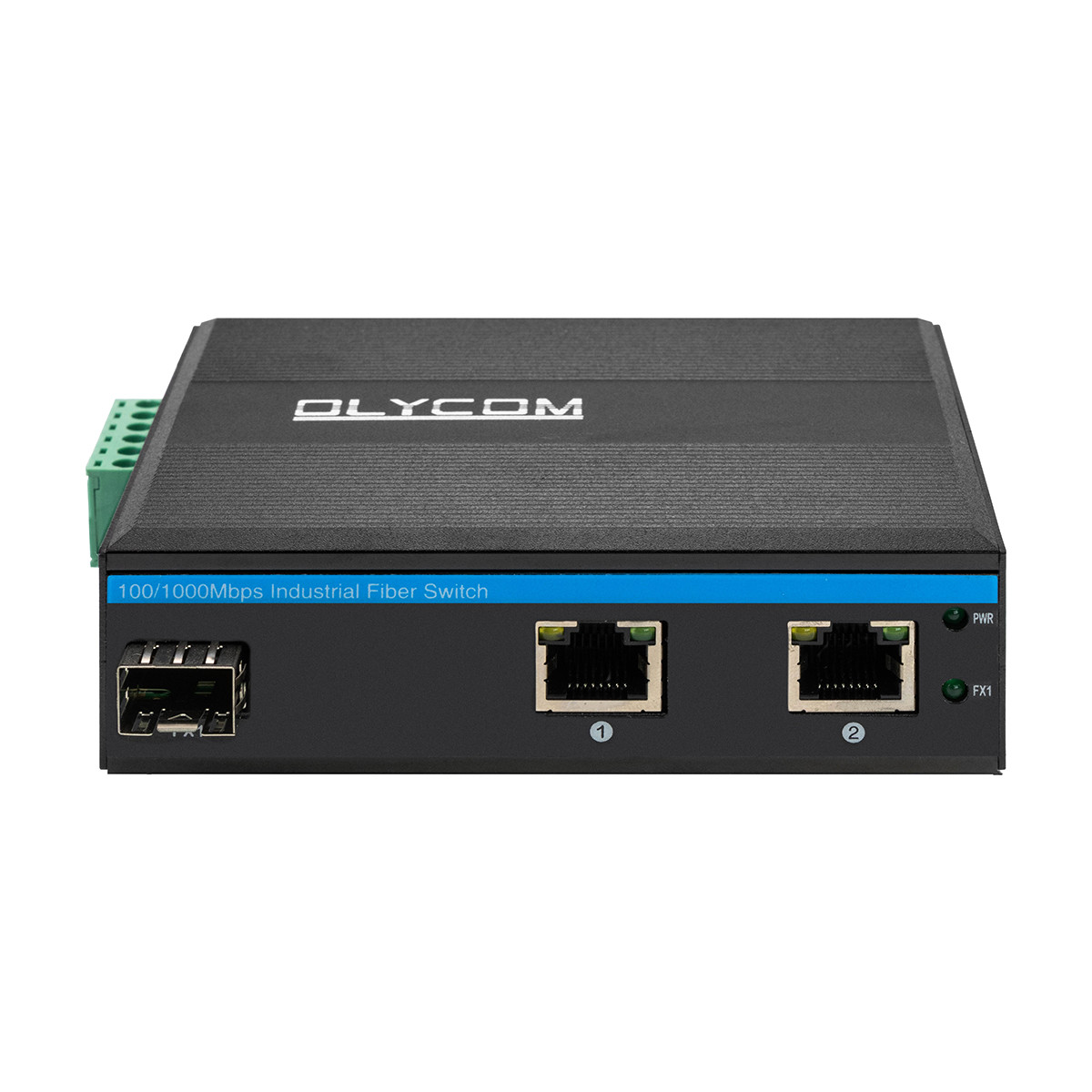

Mini gigabit 2RJ45+SFP poe switch optical fiber media converter
Key Features of mini optical media converter
Specification of gigabit 3 port switch
| Product Name | 10/100/1000Mbps Industrial POE Fiber Switch (1F+2TP) |
| Model No. | IM-FP122GE |

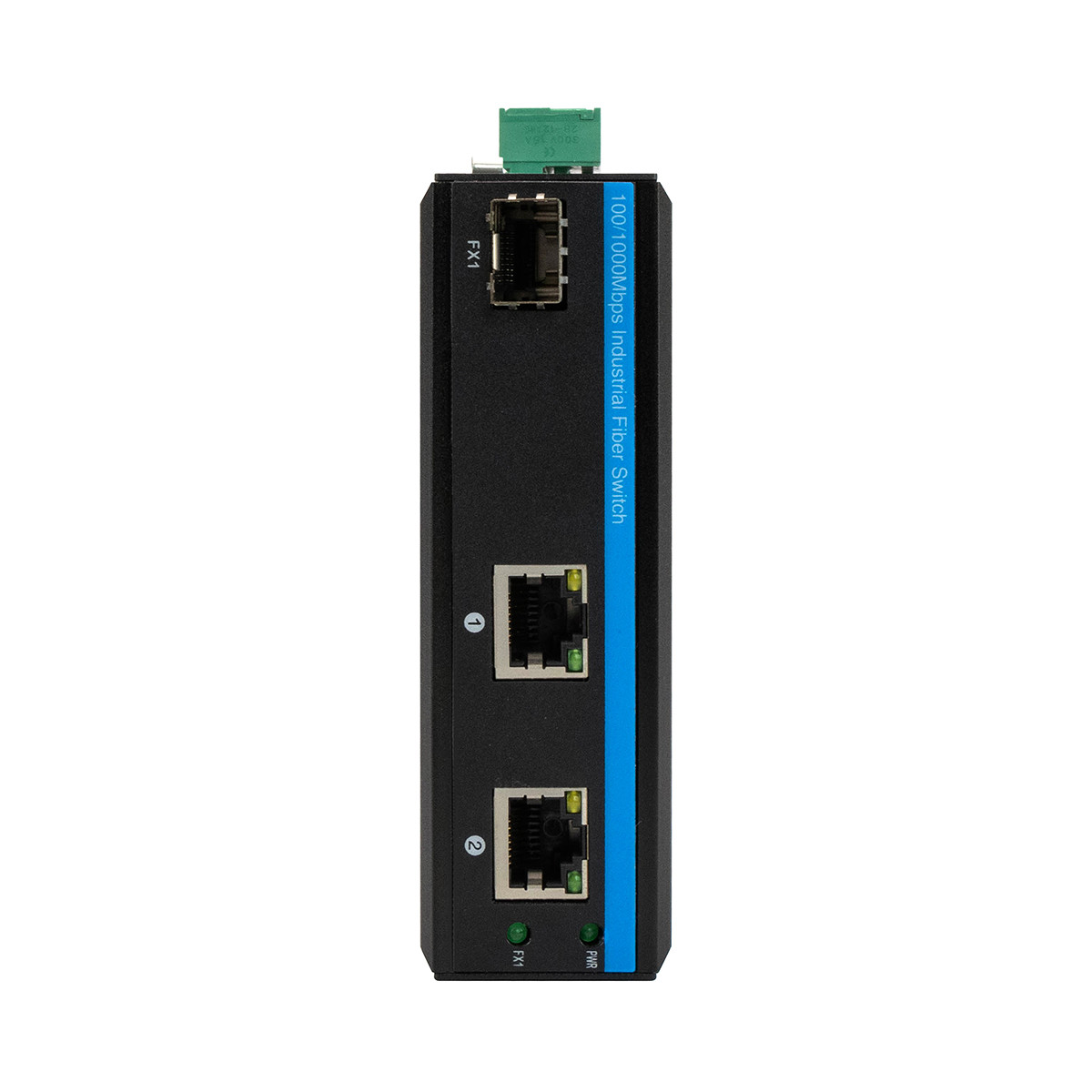

| Port |
1x 1000Mpbs SFP port SM:1310nm/1550nm,20Km 1490nm/1550nm,40~120Km MM:1310nm,2Km 2x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) |
| Switching features |
Transmission mode:storage and forward System bandwidth:40Gbps (non-traffic jam) |
| Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km |
| LEDs | Power, network, fiber |

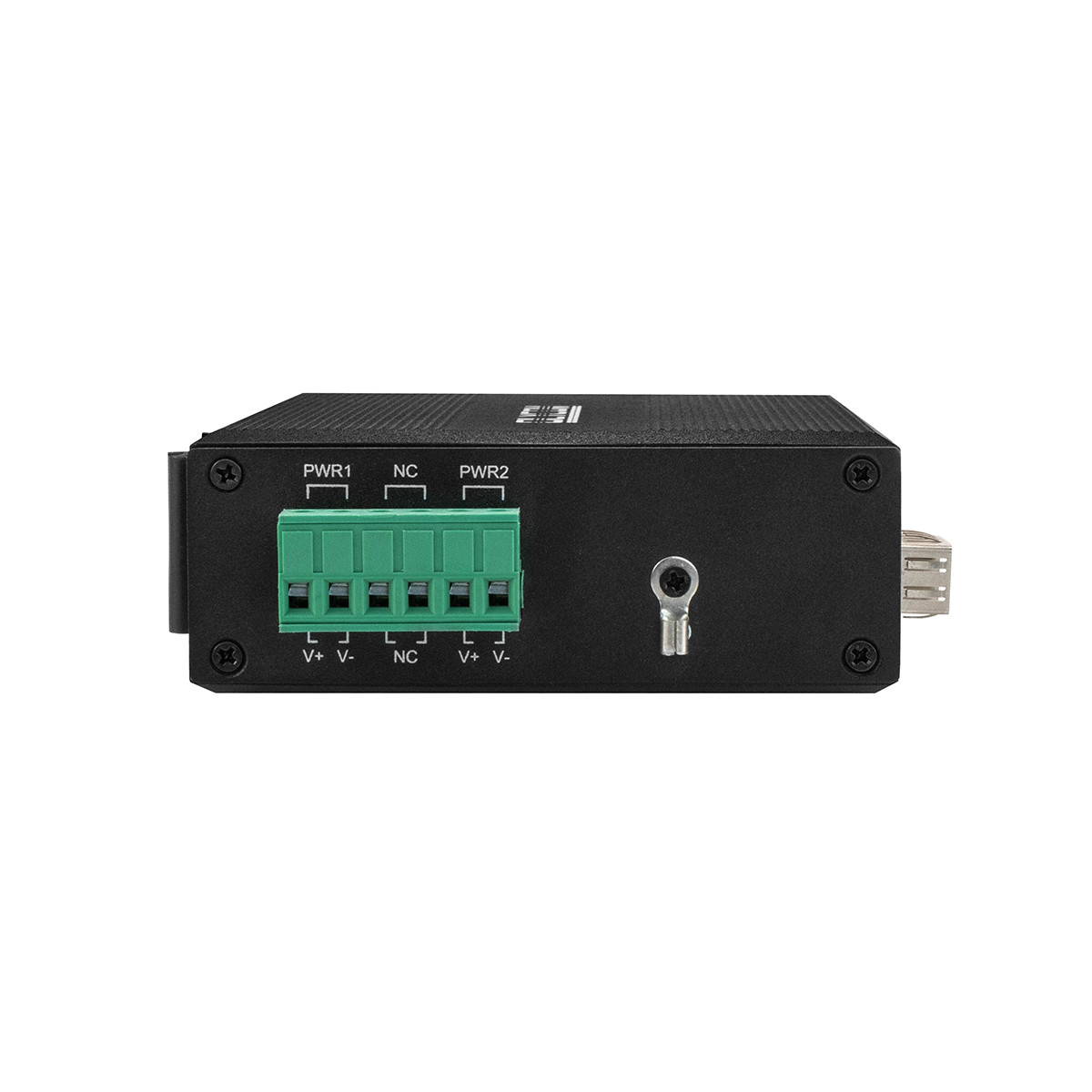

| Power supply |
POE power supply input voltage: 48V (max 52V), Single PoE power supply output power: 15.4W (port 1~2) (802.3at standards required special instructions) |
| Environment |
Working temperature:-40°～ 75°C Storage temperature:-40°～ 85°C Working humidity:10%～90%,non-condensing Storage humidity:10%～95%,non-condensing |
| Industry Standards |
EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8 Traffic Control:NEMA-TS2 Vibration:IEC 60068-2-6 Freefall:IEC 60068-2-32 Shock:IEC 60068-2-27 Rail Traffic:EN 50121-4 |
| Safety |
CE Mark ,commercial CE/LVD EN60950 |
| Mechanical information |

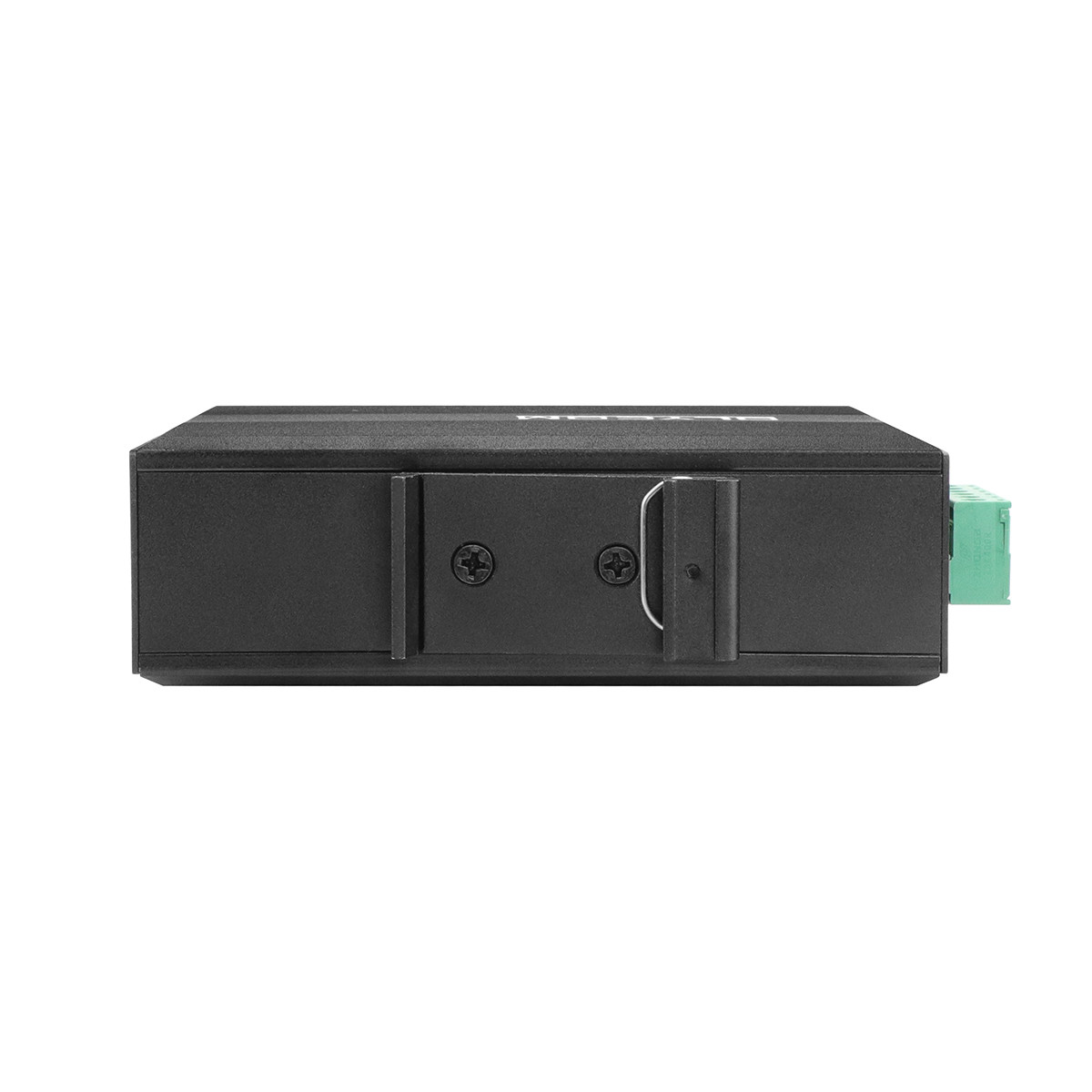

Shell:Corrugated metal shell Safety class:IP40 Dimension: 113.8 x 93 x 34.9mm Mounting method:Din-rail mounting |
| Warranty | Replacement within 1 year; 5 years repairing |
Application of industrial fiber switch
Production Steps:
