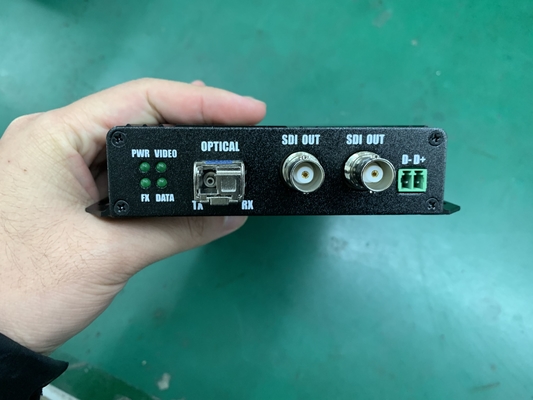

1 CH 3G SDI to LC Fiber Optic Converter up to 20km SM singer fiber

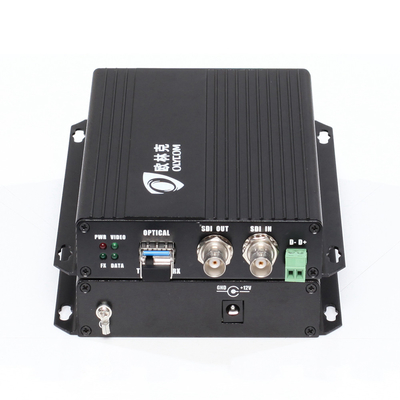

Key Features of 3G-SDI Fiber Optic Converter

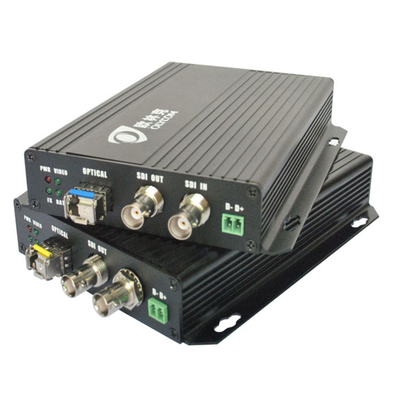

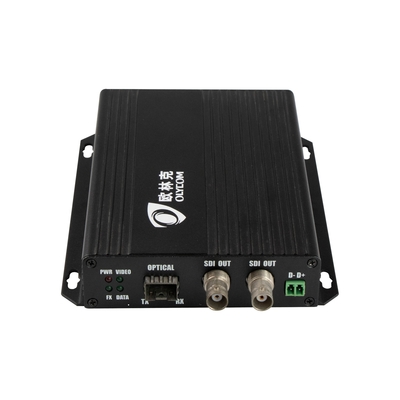

Introduction
Featuring transmission of high resolution content with highest quality, OLYCOM OM615-1S3GWT/R 3G-SDI fiber optic video extender offers long-range transmission capacity over extreme distance of up to 40km. The 3G-SDI optical extender automatically recognized and transmits SDI, HD-SDI, 3G-SDI signals, with embedded audio and metadata, and is fully compliant with SMPTE 259M, 292M, 424M and ITU digital video standards.
To optimize SDI signal transmission, the input signals are automatically equalized and re-clocked. The OM615- 1S3GWT/R 3G-SDI fiber optic video extender is ideally suited for use in digital signage, broadcast, staging, and HD CCTV applications. And fiber optic transmission, which is inherently secure and immune to outside interference, is favored in government, military, and medical environments.
Specification
| Optical | |
| Wavelength | 1310nm/1550nm |
| Fiber Type and Distance | multimode (50/125um) 5Km, ( 62.5/125um) 2Km single mode (9/125um) 20Km / 40Km |
| Transmitting Power | -5dBm to -10dBm |
| Receiving Sensitivity | -26dBm to -30dBm |
| Return Loss | > 14dB |
| Jitter | < 0.2UI |
| Interface | LC |
| Video | |
| Signal type | HD-SDI, SDI, and 3G-SDI digital video signals |
| Gain | Unity |
| Resolution | 8 or 10 bits, automatic |
| Data rates | 270 Mbps, 1.485 Gbps, 2.970 Gbps |
| Operation standards | SMPTE 259M-C, SMPTE 292M, SMPTE 424M, ITU-R BT.601, ITU-R BT.1120 |
| Auto data rate lock | Yes |
| Video Input - Transmitter | |
| Number/signal type | 2 single link SDI, HD-SDI, or 3G-SDI digital component video 1 for Tx, 1 for local preview |
| Interface | 2 female BNC |
| Impedance | 750ohms |
| Data rates | 19 Mbps to 2.97 Gbps |
| Nominal level | 0.8 Vp-p |
| Minimum/maximum levels | 0.5 V to 1.0 Vp-p |
| Return loss | ≥15 dB @ 5 MHz to 1.5 GHz, ≥10 dB @ 1.5 GHz to 3.0 GHz |
| Input cable equalization | Automatic for up to -30 dB of cable loss |
| Video Output - Receiver | |
| Number/signal type | 2 single link SDI, HD-SDI, or 3G-SDI digital component video 1 for Rx, 1 for backup / share |
| Interface | 2 female BNC |
| Impedance | 750ohms |
| Re-clocking | Automatic for 270 Mbps, 1.485 Gbps, 2.97 Gbps, or bypassed for unrecognized rates |
| Nominal level | 0.8 Vp-p |
| Minimum/maximum levels | 0.5 V to 1.0 Vp-p |
| Return loss | <-25 dB @ 100 MHz |
| Electrical. Environmental. Mechanical | |
| Voltage | DC5V1A |
| Power Consumption | 12W |
| Operating Temperature | -35℃～＋75℃ |
| Storage Temperature | -40℃～85℃ |
| Humidity | 5～95% non-condensing |
| Dimension | 117 mm L x 80 mm W x 22 mm |
| Weight | 0.5KG |
| EMI/RFI | FCC Part 15 Class A, EU EMC indication |
| MTBF | ﹥100000 hours |
Ordering Details
| OM615-1S3GWT/R-LC20 | 3G-SDI Fiber Optic Video transmitter and receiver, for SDI/HD-SDI/3G-SDI video and embedded signals, with 3G video SFP, single mode, LC connector, 20Km |
|
OM615-1S3GWT/R-LC40 |
3G-SDI Fiber Optic Video transmitter and receiver, for SDI/HD-SDI/3G-SDI video and embedded signals, with 3G video SFP, single mode, LC connector, 40Km |

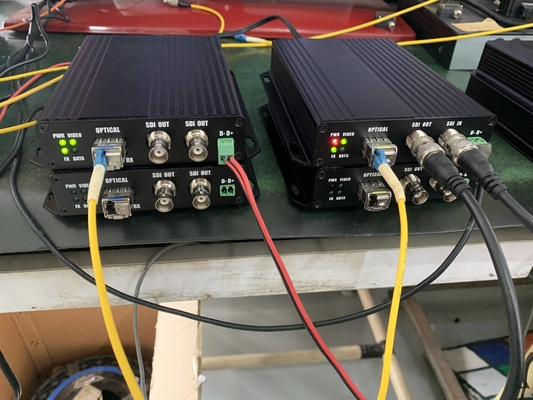

Application
