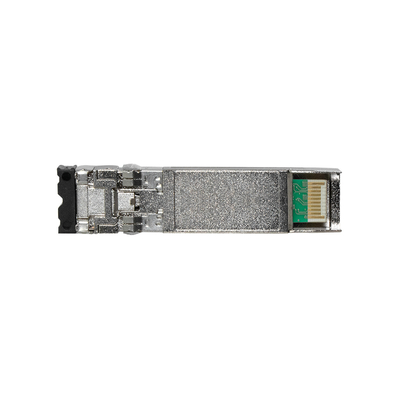

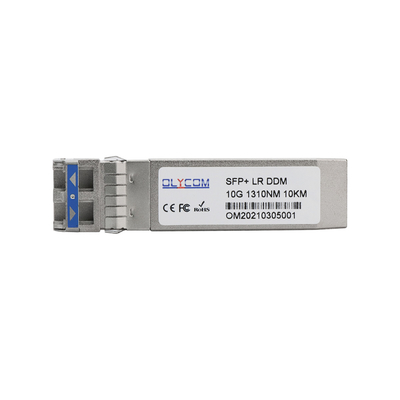

10G SFP+ Singlemode 10KM Fiber Transceiver
We can make it compatible with the below brands
Cisco
Dptech
Finisar
H3C
Huawei
Juniper
Ruijie
Siemens
ZTE
Extreme
Brocade
Alcatel
Dlink
TP-link
Mikrotik
Features of 10G Fiber Transceiver
Supports 9.95 to 11.3Gb/s bit rates
Hot-Pluggable
Duplex LC connector
1310nm DFB transmitter, PIN photo-detector
SMF links up to 10km
2-wire interface for management specifications compliant with SFF 8472 digital diagnostic
monitoring interface
Power Supply :+3.3V
Power consumption<1.5W
Industrial /Extended/ Commercial operating temperature range: -40°C to 85°C/-5°C to 85°C/-0°C to
70°C Version available
RoHS compliant
Applications of 10G Optic Module
10GBASE-LR/LW Ethernet
SONET OC-192 / SDH
10G Fiber Channel
Characteristics of SFP+ Transceiver
|
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Note |
|
Supply Voltage |
Vcc |
3.135 |
|
3.465 |
V |
|
|
Supply Current |
Icc |
|
|
430 |
mA |
|
|
Power Consumption |
P |
|
|
1.5 |
W |
|
|
Transmitter Section: |
||||||
|
Input differential impedance |
Rin |
|
100 |
|
Ω |
1 |
|
Tx Input Single Ended DC Voltage Tolerance (Ref VeeT) |
V |
-0.3 |
|
4 |
V |
|
|
Differential input voltage swing |
Vin,pp |
180 |
|
700 |
mV |
2 |
|
Transmit Disable Voltage |
VD |
2 |
|
Vcc |
V |
3 |
|
Transmit Enable Voltage |
VEN |
Vee |
|
Vee+0.8 |
V |
|
|
Receiver Section: |
||||||
|
Single Ended Output Voltage Tolerance |
V |
-0.3 |
|
4 |
V |
|
|
Rx Output Diff Voltage |
Vo |
300 |
|
850 |
mV |
|
|
Rx Output Rise and Fall Time |
Tr/Tf |
30 |
|
|
ps |
4 |
|
LOS Fault |
VLOS fault |
2 |
|
VccHOST |
V |
5 |
|
LOS Normal |
VLOS norm |
Vee |
|
Vee+0.8 |
V |
5 |
