8 Channel Bidi Dry Contact Closure Fiber Optic Converter
Introduction
Optical video transmitter and receiver, also referred to as fiber converter, media converter, optical video converter, are designed to extend the coaxial limit of 500 meters and get CCTV signals connected to 80km max on optical fiber cable.
This dry contact over fiber converter transmits and receives contact closure signals with minimum disturbance.
On top of this, our fiber optical converter serial also provide video, audio, data, telephone and Ethernet signals transmission.
Specification
| Optical | |
| Wavelength | 1310nm/1550nm |
| Output Power | -8~3dBm |
| Optic Fiber |
Single mode (9/125um) 20Km to 80Km Multimode (50/125um) 1Km, ( 62.5/125um) 500m |
| Receiving Sensitivity | -30dBm |
| Interface | FC/ST/SC |
| Contact Closure | |
| Signal Input | Alarm, Binary input, support TTL, RS-232/422/485 or passive switch button |
| Signal Output | Arbitrary alarm, Binary output, support TTL, RS-232/422/485 or relay output |
| Interface | Phoenix terminal |
|
|
|
| Chassis and Cards | |
| Chassis Slots Quantity | 18 slots |
| Compatibility(with cards) | 1~4ch cards(18pcs); 8ch cards(9pcs) |
| Flexibility | Supports mixed installation of different configurations |
| Cards |
In 4ch PCB(153x100x10mm) or 8ch PCB size (153x100x25mm) configurations which require larger size can’t be used with this system |
| Electrical. Environmental. Mechanical | |
| Operating Voltage | Standalone:220VAC to 5V/12VDC, Rack: dual 220V/-48V AC, card: powered by chassis |
| Operating Temperature | -35℃～+75℃ |
| Storage Temperature | -45℃～+85℃ |
| Humidity | 0~95% non-condensing |
| Dimension And Weight | Standalone and card: depends on different configurations, Chassis: 19”3U |
Application
Ordering Details
| OM610-1V↑1D↓1P1E WT/R | 1ch video Tx + 1ch RS485 data Rx + 1ch 10/100M Ethernet + 1 Telephone. |
| OM610-1V↑2D↓2A↑1E WT/R | 1ch video Tx + 2ch RS485 data Rx + 2ch audio Tx + 1ch 10/100M Ethernet |
| OM610-1V↑2D↓2A↑2K↑WT/R | 1ch video Tx + 2ch RS485 data Rx + 2ch audio Tx + 1ch Contact Closure Tx |
| OM610-2P1EWT/R | 2ch Telephone + 1ch 10/100M Ethernet |
| OM610-2V↑1D↓1P1E WT/R | 2ch video Tx + 1ch RS485 data Rx + 1ch 10/100M Ethernet + 1 Telephone. |
| OM610-2V↑2D↓2A↑1E WT/R | 2ch video Tx + 2ch RS485 data Rx + 2ch audio Tx + 1ch 10/100M Ethernet |
| OM610-4EWT/R | 4ch 10/100M Ethernet |
| OM610-4P2D↓WT/R | 4ch Telephone+ 2ch RS485 data Rx |
| OM610-4V↑1D↓4E WT/R | 4ch video Tx + 1ch RS485 data Rx + 4ch 10/100M Ethernet |
| OM610-4V↑1D↓4PWT/R | 4ch video Tx + 1ch RS485 data Rx + 4ch Telephone |
| OM610-4V↑12D↓WT/R | 4ch video Tx + 12ch RS485 data Rx |
| OM610-2D↓8PWT/R | 2ch RS485 data Rx + 8ch Telephone |
| OM610-20D↓WT/R | 20ch RS485 data Rx |
| OM610-1V↑↓1D↑↓1A↑↓1K↑↓WT/R | 1ch bi-di video + 1ch bi-di RS485 data + 1ch bi-di audio + 1ch bi-di contact closure |
| OM610-2D↑↓4A↑↓1E WT/R | 4ch bi-di audio + 2ch bi-di RS485 data + 1ch 10/100M Ethernet |
| OM610-1V↑1D↑↓3A↑2K↑↓WT/R | 1ch video Tx + 2ch bi-di RS485 data + 3ch audio Tx + 1ch bi-di contact closure |
| OM610-4V↑2D↓2A↑1E 1P2K↑WT/R | 4ch video Tx + 2ch RS485 data Rx + 2ch audio Tx + 1ch 10/100M Ethernet + 1ch Telephone + 2ch Contact Closure Tx |
| Item Number Code | |
| OM600 |
OM600-Video Optical Transmitter / Receiver, 610-desk-top standalone, 620-card style 613-mini series, 615-HD series |
| V | Video |
| A | Audio |
| D | Data |
| K | Alarm (I/O, contact closure) |
| P | Telephone |
| E | Ethernet |
| M,W | M-Multi-mode, W-Single mode |
| S,U | S-1310nm, U-1550nm |
| T,R | T -Transmitter, R-Receiver |
| FC,ST,SC,LC | Fiber connector type |
| ↑,↓, ↑↓ | ↑- forward (from TX to RX), ↓ - reverse (from RX to TX), ↑↓- bidirectional |
| 1,2,3,… | Digits ahead of signal-quantity of required channel |
| 05, 20, 40… | Digits next to fiber connector-working distance |

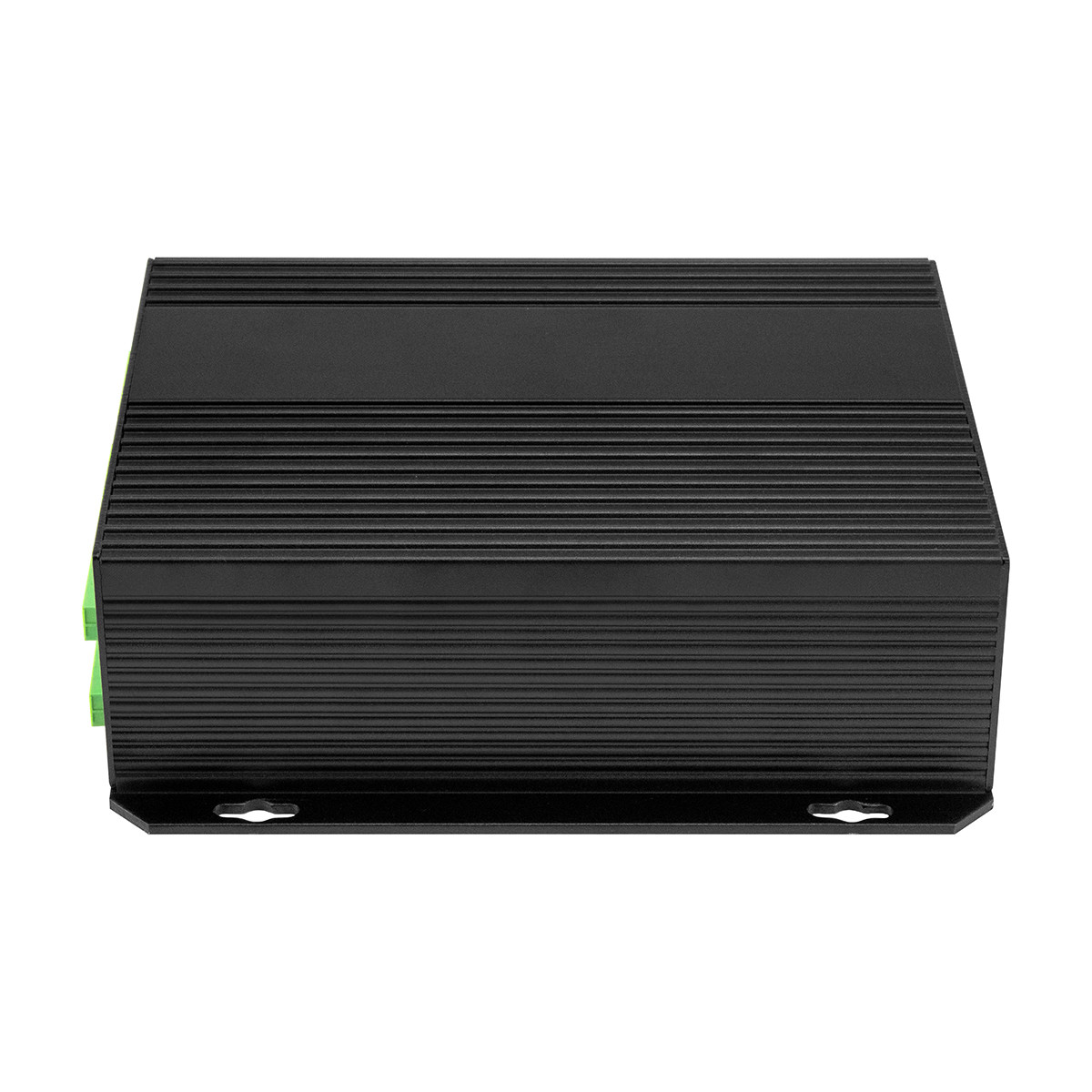

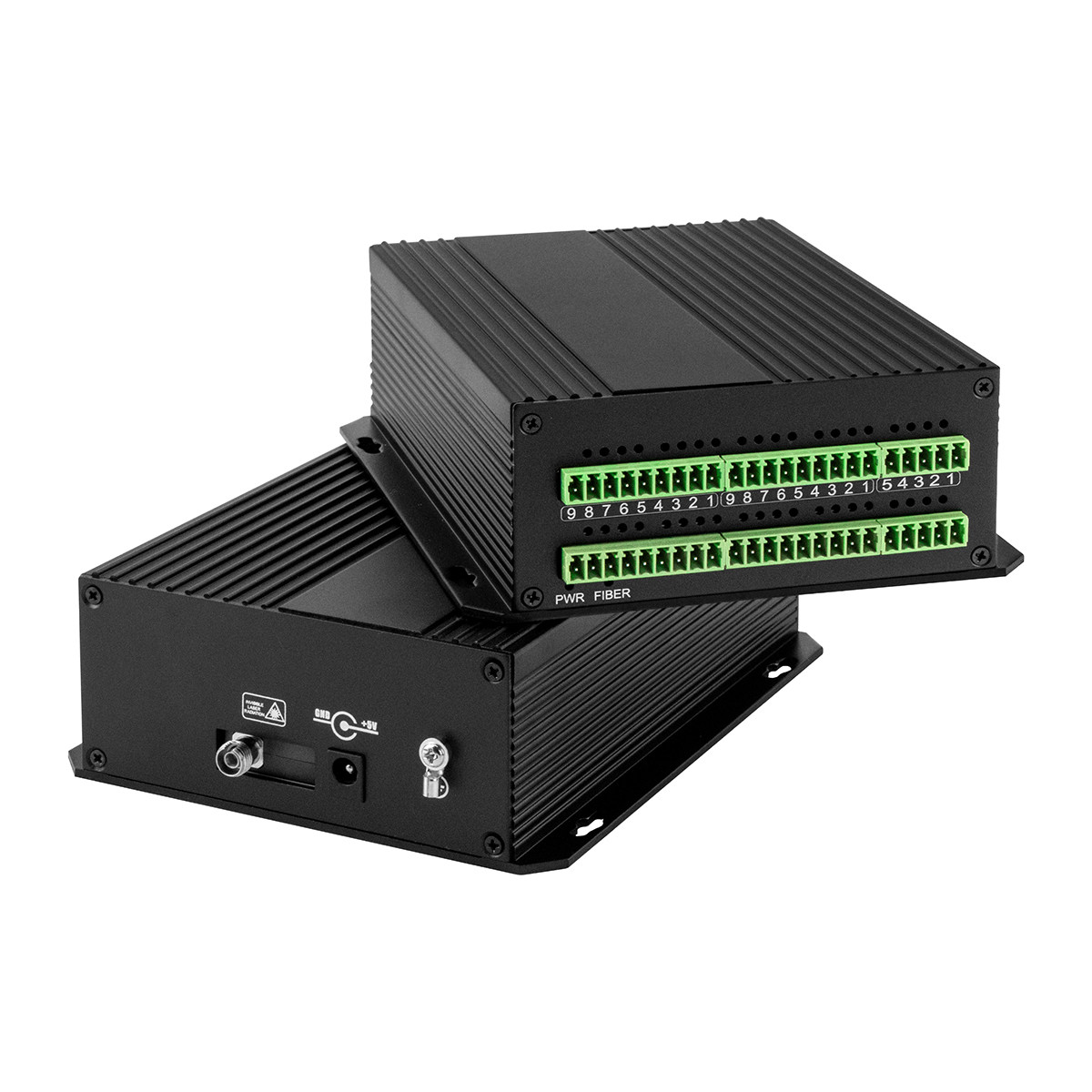

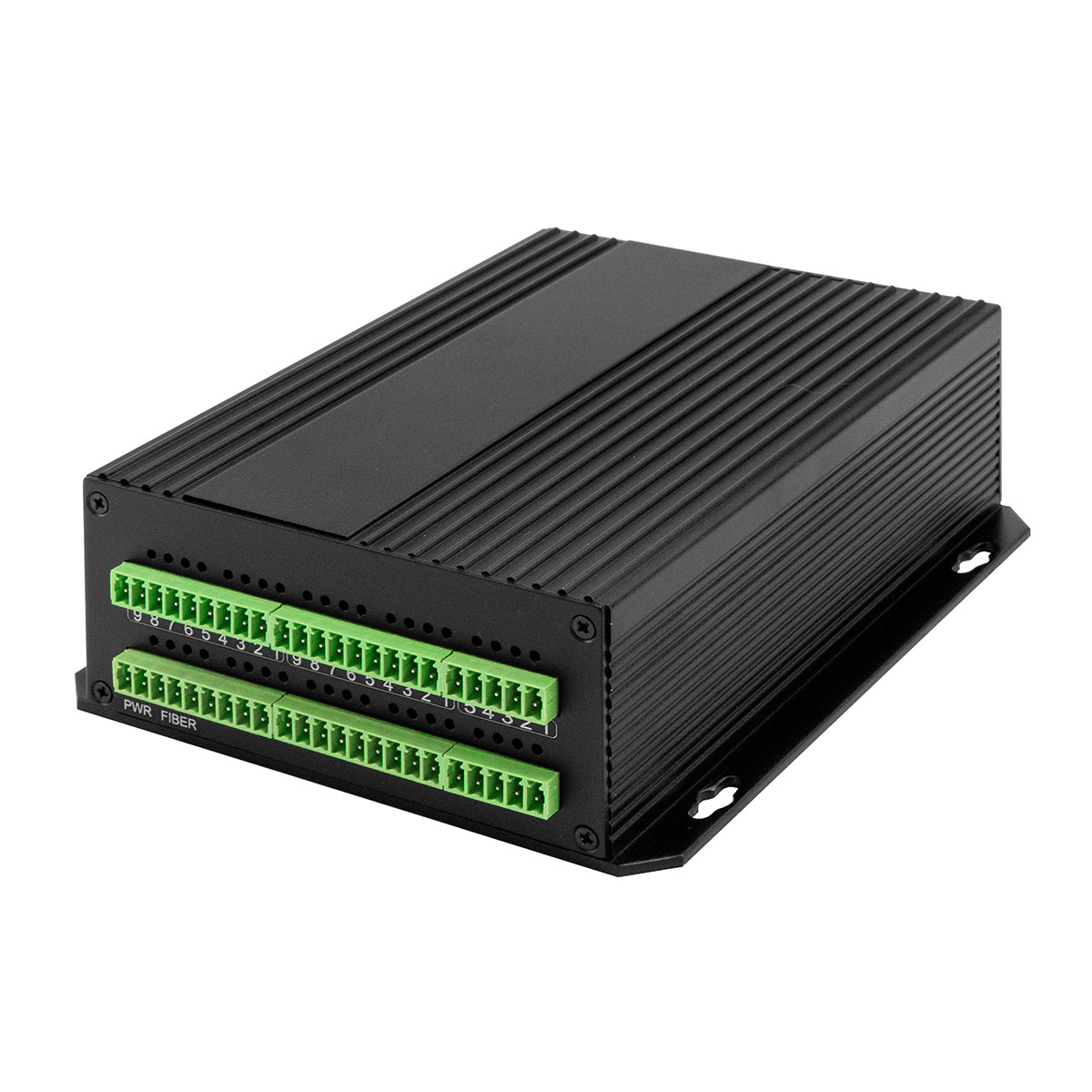

Product Images
