8ch Optical Analog Video Transmitter And Receiver
Product Overview of Video Media Converter
Olycom video optical transmitter receiver is designed to
On 9/125um Single mode fiber its working distance is 20Km to 80KM
On multimode fiber it’s 1Km
Without EMI, RFI and ground loop
Hot plug-and-play with switch power supply
Key Features of Analog Video Extender
Available in standalone and 3U chassis
Specification of Video Fiber Converter
| Optical | |
| Wavelength | 1310nm/1550nm |
| Output Power | -8~3dBm |
| Optic fiber | Single mode (9/125um) 20Km, multimode (50/125um) 1Km, ( 62.5/125um) 500m |
| Receiving sensitivity | -30dBm |
| Interface | FC standard, ST/SC optional |
| Video | |
| Channel Quantity | 8ch, from camera to control center |
| Compatible Systems | NTSC/PAL/SECAM |
| Impedance/Voltage | BNC 75Ω (unbalanced) / 2.0Vp-p |
| Differential Gain | < ±1% |
| Differential Phase | < ±1 |
| S/N ratio | >60dB(weighting)(8 bit) |
| Interface | BNC |
| Electrical. Environmental. Mechanical | |
| Operating voltage | DC 5V1A |
| Operating temperature | -20℃～+70℃ |
| Storage temperature | -45℃～+85℃ |
| Humidity | 0~95%non-condensing |
| Dimension-standalone | 179mm ×130.5mm ×50mm |
| Weight | 0.66kg/piece (Net Weight), 1.00 kg/piece (Gross Weight) |
Application
FAQ
1. How will you ship my order?
We will send the goods by air(DHL, UPS or FEDEX) or by sea(for bulk order)
It is fine to ship purchased items via customer’s shipping account or forwarder.
It takes 3~5 calendar days to arrive at local customs for clearance.
2. Can I have a discount?
Yes and it is usually based on quantity and after sample testing.
3. What is your warranty period?
For commercial models like fiber Ethernet media converter or fiber optic PoE switch, it is 1 year.
For industrial grade products, it is 3 years.
We do lifetime technical support if the models are from Olycom company.
4. Can I have my own packing box?
Yes, the standard packing box does have not have Chinese letters or logo.
Its fine to customize your own version like putting your logo, model name or slogans on it.
Warranty
1 year for commercial products and 3 years for industrial products.
Technical support will be offered free.
| Products Category | Warranty Period |
| Fiber Ethernet Media Converter | 1 year |
| Optical Video Converter | 1 year |
| Fiber Switch | 1 year |
| Ethernet Switch | 1 year |
| Serial Fiber Converter | 1 year |
| PDH Multiplexer | 1 year |
| CCTV PoE Switch | 1 year |
| Commercial Managed Switch | 1 year |
| Commercial PoE Managed Switch | 1 year |
| Din Power Supply | 3 years |
| Industrial Ethernet Switch | 3 years |
| Industrial PoE Switch | 3 years |
| Industrial Managed Switch | 3 years |
| Industrial PoE Managed Switch | 3 years |
| CWDM Module | 1 year |
| DWDM/OTN Devices | 1 year |

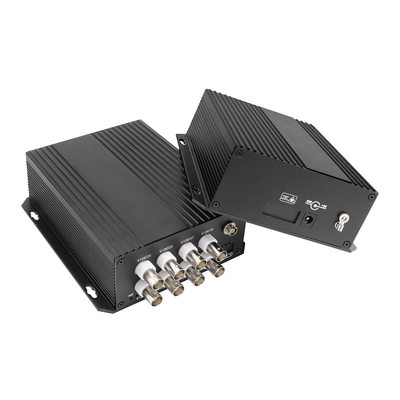

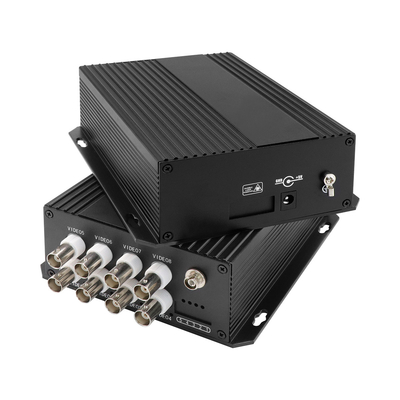

Product Pictures
